2.2 Chemical Bonds

Atoms separated by a great distance cannot link; they must come close enough for the electrons in their valence shells to interact. But do atoms ever actually touch one another? Most physicists would say no, because the negatively charged electrons in their valence shells repel one another. No force within the human body—or anywhere in the natural world—is strong enough to overcome this electrical repulsion. So when you read about atoms linking together or colliding, bear in mind that the atoms are not merging in a physical sense.

Instead, atoms link by forming a chemical bond. A bond is a weak or strong electrical attraction that holds atoms in the same vicinity. The new grouping is typically more stable—less likely to react again—than its component atoms were when they were separate. A more or less stable grouping of two or more atoms held together by chemical bonds is called a molecule. The bonded atoms may be of the same element, as in the case of H2, which is called molecular hydrogen or hydrogen gas. When a molecule is made up of two or more atoms of different elements, it is called a chemical compound. A unit of water, or H2O, is a compound, as is a single molecule of the gas methane, or CH4.

Three types of chemical bonds are important in human physiology, because they hold together substances that are used by the body for critical aspects of homeostasis, signaling, and energy production, to name just a few important processes. These are ionic bonds, covalent bonds, and hydrogen bonds.

Ions and Ionic Bonds

Recall that an atom typically has the same number of positively charged protons and negatively charged electrons. As long as this situation remains, the atom is electrically neutral. When an atom participates in a chemical reaction that results in the donation or acceptance of one or more electrons, the atom will then become positively or negatively charged. This happens frequently for most atoms in order to have a full valence shell, as described previously. This can happen either by gaining electrons to fill a shell that is more than half-full, or by giving away electrons to empty a shell that is less than half-full, thereby leaving the next smaller electron shell as the new full valence shell. An atom that has an electrical charge—whether positive or negative—is an ion.

Potassium (K), for instance, is an important element in all body cells. Its atomic number is 19, and it has just one electron in its valence shell. This characteristic makes potassium highly likely to participate in chemical reactions in which it donates one electron (it is easier for potassium to donate one electron than to gain seven electrons). The loss will cause the positive charge of potassium’s protons to be more influential than the negative charge of potassium’s electrons. In other words, the resulting potassium ion will be slightly positive. A potassium ion is written K⁺, indicating that it has lost a single electron. A positively charged ion is known as a cation.

Now consider fluorine (F), a component of bones and teeth. Its atomic number is nine, and it has seven electrons in its valence shell. Thus, it is highly likely to bond with other atoms in such a way that fluorine accepts one electron (it is easier for fluorine to gain one electron than to donate seven electrons). When it does, its electrons will outnumber its protons by one and it will have an overall negative charge. The ionized form of fluorine is called fluoride and is written as F^–. A negatively charged ion is known as an anion.

Atoms that have more than one electron to donate or accept will end up with stronger positive or negative charges. A cation that has donated two electrons has a net charge of +2. Using magnesium (Mg) as an example, this can be written as Mg⁺⁺ or Mg²⁺. An anion that has accepted two electrons has a net charge of –2. The ionic form of selenium (Se), for example, is typically written Se^2–.

The opposite charges of cations and anions exert a moderately strong mutual attraction that keeps the atoms in close proximity forming an ionic bond. An ionic bond is an ongoing, close association between ions of opposite charge. The table salt you sprinkle on your food owes its existence to ionic bonding. As shown in Figure 2.2.1, sodium commonly donates an electron to chlorine, becoming the cation Na+. When chlorine accepts the electron, it becomes the chloride anion, Cl^–. With their opposing charges, these two ions strongly attract each other.

Water is an essential component of life because it is able to break the ionic bonds in salts to free the ions. In fact, in biological fluids, most individual atoms exist as ions. These dissolved ions produce electrical charges within the body. The behavior of these ions produces the tracings of heart and brain function observed as waves on an electrocardiogram (EKG or ECG) or an electroencephalogram (EEG). The electrical activity that derives from the interactions of the charged ions is why they are also called electrolytes.

Covalent Bonds

Unlike ionic bonds formed by the attraction between a cation’s positive charge and an anion’s negative charge, molecules formed by a covalent bond share electrons in a mutually stabilizing relationship. Like next-door neighbors whose kids hang out first at one home and then at the other, the atoms do not lose or gain electrons permanently. Instead, the electrons move back and forth between the elements. Because of the close sharing of pairs of electrons (one electron from each of two atoms), covalent bonds are stronger than ionic bonds.

Nonpolar Covalent Bonds

Figure 2.2.2 shows several common types of covalent bonds. Notice that the two covalently bonded atoms typically share just one or two electron pairs, though larger sharings are possible. The important concept to take from this is that in covalent bonds, electrons in the outermost valence shell are shared to fill the valence shells of both atoms, ultimately stabilizing both of the atoms involved. In a single covalent bond, a single electron is shared between two atoms, while in a double covalent bond, two pairs of electrons are shared between two atoms. There are even triple covalent bonds, where three atoms are shared.

You can see that the covalent bonds shown in Figure 2.2.2 are balanced. The sharing of the negative electrons is relatively equal, as is the electrical pull of the positive protons in the nucleus of the atoms involved. This is why covalently bonded molecules that are electrically balanced in this way are described as nonpolar; that is, no region of the molecule is either more positive or more negative than any other.

Polar Covalent Bonds

Groups of legislators with completely opposite views on a particular issue are often described as “polarized” by news writers. In chemistry, a polar molecule is a molecule that contains regions that have opposite electrical charges. Polar molecules occur when atoms share electrons unequally, in polar covalent bonds.

The most familiar example of a polar molecule is water (Figure 2.2.3). The molecule has three parts: one atom of oxygen, the nucleus of which contains eight protons, and two hydrogen atoms, whose nuclei each contain only one proton. Since every proton exerts an identical positive charge, a nucleus that contains eight protons exerts a charge eight times greater than a nucleus that contains one proton. This means that the negatively charged electrons present in the water molecule are more strongly attracted to the oxygen nucleus than to the hydrogen nuclei. Each hydrogen atom’s single negative electron, therefore, migrates toward the oxygen atom, making the oxygen end of their bond slightly more negative than the hydrogen end of their bond.

What is true for the bonds is true for the water molecule as a whole; that is, the oxygen region has a slightly negative charge and the regions of the hydrogen atoms have a slightly positive charge. These charges are often referred to as “partial charges” because the strength of the charge is less than one full electron, as would occur in an ionic bond. As shown in Figure 2.2.3, regions of weak polarity are indicated with the Greek letter delta (∂) and a plus (+) or minus (–) sign.

Even though a single water molecule is unimaginably tiny, it has mass, and the opposing electrical charges on the molecule pull that mass in such a way that it creates a shape somewhat like a triangular tent (see Figure 2.2.3b). This dipole, with the positive charges at one end formed by the hydrogen atoms at the “bottom” of the tent and the negative charge at the opposite end (the oxygen atom at the “top” of the tent), makes the charged regions highly likely to interact with charged regions of other polar molecules. For human physiology, the resulting bond, formed by water, is one of the most important—the hydrogen bond.

Hydrogen Bonds

A hydrogen bond is formed when a weakly positive hydrogen atom already bonded to one electronegative atom (for example, the oxygen in the water molecule) is attracted to another electronegative atom from another molecule. In other words, hydrogen bonds always include hydrogen that is already part of a polar molecule.

The most common example of hydrogen bonding in the natural world occurs between molecules of water. It happens before your eyes whenever two raindrops merge into a larger bead or a creek spills into a river. Hydrogen bonding occurs because the weakly negative oxygen atom in one water molecule is attracted to the weakly positive hydrogen atoms of two other water molecules (Figure 2.2.4).

Water molecules also strongly attract other types of charged molecules as well as ions. This explains why “table salt,” for example, actually is a molecule called a “salt” in chemistry; it consists of equal numbers of positively charged sodium (Na⁺) and negatively charged chloride (Cl^–) and dissolves so readily in water, in this case, forming dipole-ion bonds between the water and the electrically charged ions (electrolytes). Water molecules also repel molecules with nonpolar covalent bonds, like fats, lipids, and oils. You can demonstrate this with a simple kitchen experiment: pour a teaspoon of vegetable oil, a compound formed by nonpolar covalent bonds, into a glass of water. Instead of instantly dissolving in the water, the oil forms a distinct bead because the polar water molecules repel the nonpolar oil.

Glossary

anion

a negatively charged ion

bond

a weak or strong electrical attraction that holds atoms in the same vicinity

cation

a positively charged ion

compound

a molecule that is made up of two or more atoms of different elements

covalent bond

two atoms sharing electrons in a mutually stabilizing relationship

hydrogen bond

the weak attraction between a slightly positive hydrogen atom in a polar molecule and another electronegative atom from another molecule

ion

an atom or molecule that has a positive or negative electrical charge

ionic bond

an ongoing, close association between ions of opposite charge

molecule

a more or less stable grouping of two or more atoms held together by chemical bonds

nonpolar covalent bond

a bond produced by equal sharing of electrons

polar covalent bond

a bond produced by unequal sharing of electrons

polar molecule

a molecule that contains regions that have opposite electrical charges

Glossary Flashcards

Image Descriptions

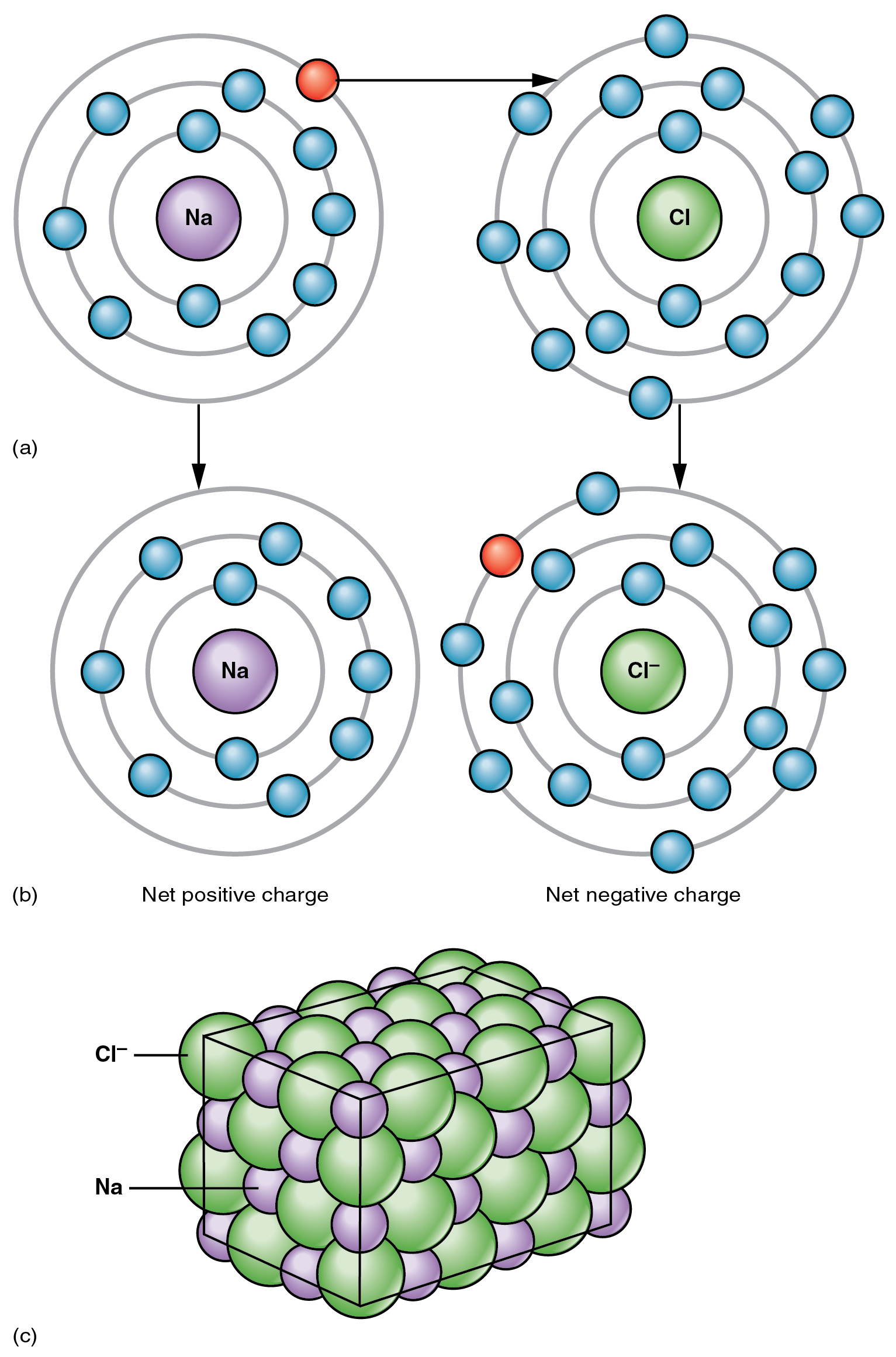

Figure 2.2.1. A three-part diagram illustrating the formation of sodium chloride (table salt) through ionic bonding. Part (a) shows two neutral atoms side by side: on the left is a sodium (Na) atom with a purple nucleus, three electron shells, and eleven total electrons (two on the inner shell, eight on the middle shell, and one blue electron on the outermost shell); on the right is a chlorine (Cl) atom with a green nucleus, three electron shells, and seventeen total electrons (two on the inner shell, eight on the middle shell, and seven on the outermost shell). A red electron with an arrow shows the transfer of sodium’s outermost electron to chlorine. Part (b) shows the resulting ions after electron transfer: on the left is a sodium ion (Na⁺) labeled ‘Net positive charge’ with ten electrons remaining in two complete shells, having lost its outermost electron; on the right is a chloride ion (Cl⁻) labeled ‘Net negative charge’ with eighteen electrons including the gained electron, now having a complete outer shell of eight electrons. Part (c) shows a three-dimensional cubic crystal lattice structure of sodium chloride, where purple spheres representing sodium ions and green spheres representing chloride ions alternate in a regular geometric pattern, forming the characteristic structure of table salt crystals. [Return to Figure 2.2.1]

Figure 2.2.2. A three-part educational diagram illustrating different types of covalent bonding. Part (a), labeled ‘A single covalent bond: hydrogen gas (H—H). Two atoms of hydrogen each share their solitary electron in a single covalent bond,’ shows two hydrogen nuclei (marked as ‘H’ with ‘+’ signs) surrounded by overlapping gray electron clouds, with two small yellow-green spheres representing the shared electrons between them. Part (b), labeled ‘A double covalent bond: oxygen gas (O=O). An atom of oxygen has six electrons in its valence shell; thus, two more would make it stable. Two atoms of oxygen achieve stability by sharing two pairs of electrons in a double covalent bond,’ displays two oxygen atoms each with a pink/red nucleus labeled ‘O’, surrounded by two concentric gray electron shells. Each oxygen has six yellow electrons on its outer shell, with four yellow electrons (two pairs) shown in green circles positioned between the atoms representing the shared electrons in the double bond, plus two additional yellow electrons on each side. This is labeled ‘Molecule of oxygen gas (O₂)’. Part (c), labeled ‘Two double covalent bonds: carbon dioxide (O=C=O). An atom of carbon has four electrons in its valence shell; thus, four more would make it stable. An atom of carbon and two atoms of oxygen achieve stability by sharing two electron pairs each, in two double covalent bonds,’ shows three atoms in a row: an oxygen atom (pink nucleus labeled ‘O’) on the left, a carbon atom (gray nucleus labeled ‘C’) in the center, and another oxygen atom on the right. Each atom has electron shells with yellow electrons, and between each pair of atoms are four electrons in green circles (two pairs) representing the double bonds on each side of the carbon atom. [Return to Figure 2.2.2]

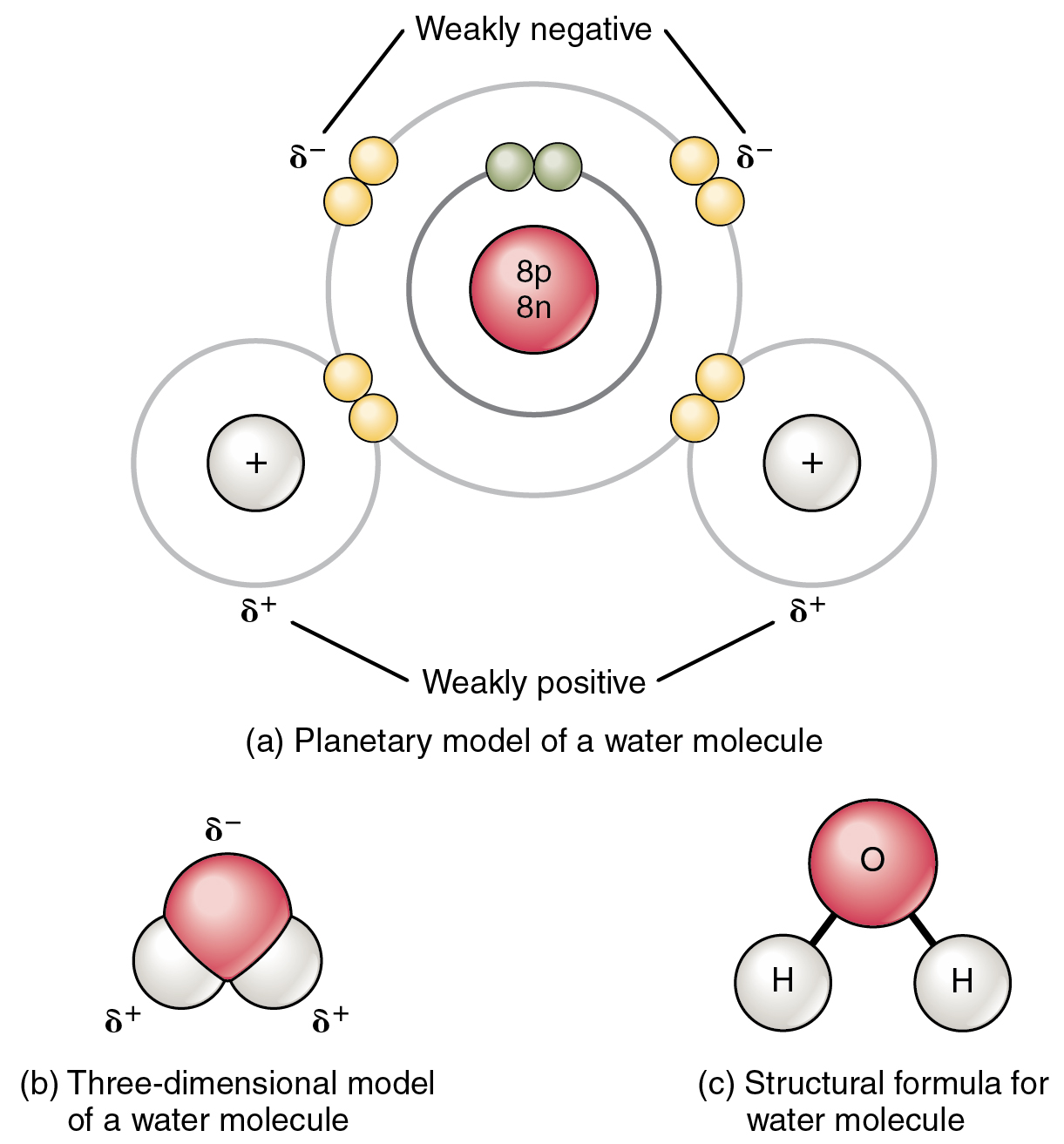

Figure 2.2.3. A three-part diagram showing different representations of a water molecule (H₂O). Part (a), labeled ‘Planetary model of a water molecule,’ shows a central oxygen atom with a pink/red nucleus containing ‘8p 8n’ (8 protons and 8 neutrons), surrounded by two gray concentric electron shells. The inner shell contains two small green-yellow paired electrons at the top, while the outer shell has eight yellow electrons arranged around it, with two pairs of shared electrons visible. Two hydrogen atoms are shown on the left and right sides, each represented by a small white circle with a ‘+’ sign and a single electron shell. The diagram indicates charge distribution with ‘δ⁻’ (delta minus) labels pointing to the oxygen side marked ‘Weakly negative’ at the top, and ‘δ⁺’ (delta plus) labels pointing to each hydrogen atom marked ‘Weakly positive’ at the bottom, illustrating the polar nature of the water molecule. Part (b), labeled ‘Three-dimensional model of a water molecule,’ shows a space-filling molecular model where a large pink/red sphere (oxygen) sits above two smaller white spheres (hydrogen atoms) that are positioned at an angle, with ‘δ⁻’ labeling the oxygen and ‘δ⁺’ labeling each hydrogen. Part (c), labeled ‘Structural formula for water molecule,’ shows a simplified diagram with a pink circle labeled ‘O’ at the top connected by lines to two white circles labeled ‘H’ below it, forming a bent molecular structure typical of water’s approximately 104.5-degree bond angle. [Return to Figure 2.2.3]

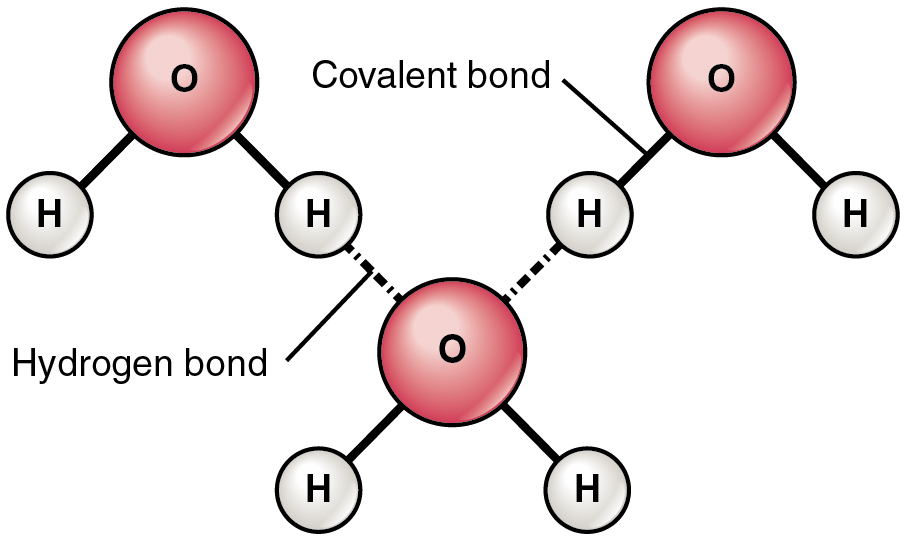

Figure 2.2.4. A molecular diagram illustrating hydrogen bonding between three water molecules. The diagram shows three H₂O molecules arranged in a triangular pattern. Each water molecule consists of one large pink/red sphere labeled ‘O’ (oxygen atom) connected by solid black lines to two smaller white spheres labeled ‘H’ (hydrogen atoms), forming the characteristic bent shape of a water molecule. The top two water molecules are positioned with their oxygen atoms at the upper left and upper right of the diagram. The third water molecule is positioned at the bottom center. Between the molecules, dashed lines indicate hydrogen bonds: two dashed lines extend from hydrogen atoms of the upper water molecules down to the oxygen atom of the lower water molecule. The diagram includes two labels: ‘Covalent bond’ points to a solid line connecting an oxygen atom to a hydrogen atom within a single water molecule, and ‘Hydrogen bond’ points to one of the dashed lines connecting hydrogen atoms from one molecule to the oxygen atom of another molecule, demonstrating the intermolecular attraction that gives water many of its unique properties. [Return to Figure 2.2.4]
